Bitumen tanks and boxes stock

About bitumen tanks & boxes

Discover the diverse solutions for the transport and storage of bitumen.

With various bitumen tanks, swaps, and Bituboxes available in different capacities and technical specifications, we can always find the perfect fit for your needs. All our Bitumentanks and -boxes are tested and inspected by a independent authority that grants our products with the certificates that are needed. Because we build following the strict European quality standards, our tanks, swaps and boxes are a safe and reliable way to transport or store your bitumen.

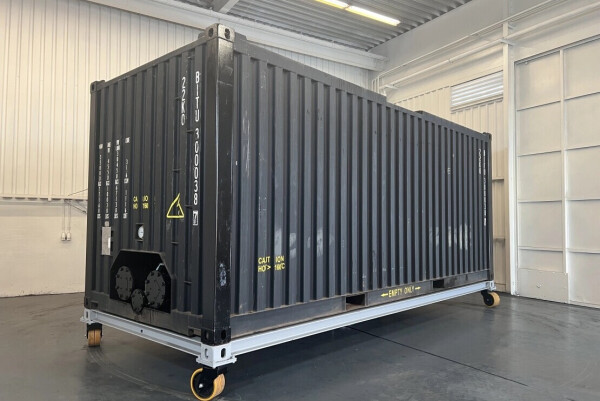

20ft bitubox new build

The unique design of the Bitubox makes it a very safe and highly cost-effective way to transport or store high volumesof bitumen. Since the box is modified out of a standard 20ft container, the Bitubox is very suitable for intermodal transport per ship, train and truck. The fork lift pockets make it very easy and safe to handle the box.

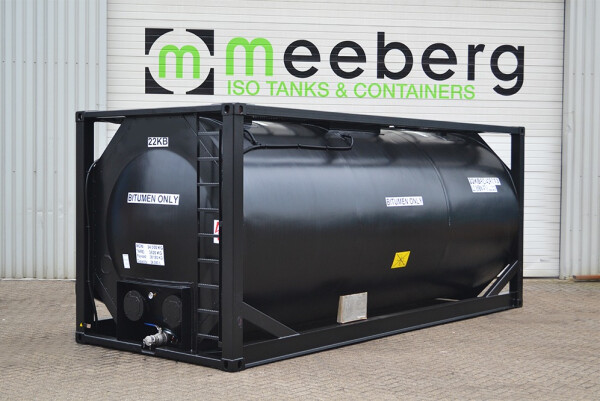

20ft bitumen tank rebuild

A used tank container with a stainless steel barrel is used as basis for the rebuild bitumen tank container. Our rebuild bitumen tanks can be used for the transport and storage of different types of bitumen, other fuels and emulsions.

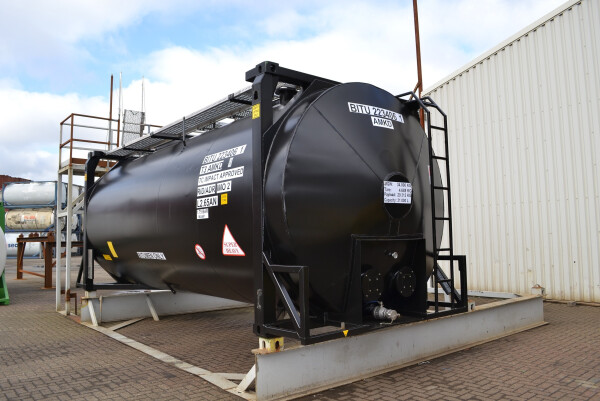

23ft bitumen swap body

A bitumen swap tank is an insulated swap body tank container with a flametube heating system which has a higher capacity than a 20FT Bitumentank. The bitumen swap tank has a 23FT frame That makes it possible to transport the tanks by truck or train. The capacity of the bitumen swaptank is bigger than a regular 20FT bitumentank because of the protuding sides. A bitumen swap can vary between 30.000 and 35.000 liters

Turn the heat on!

At a normal temperature bitumen is solid, it has to be heated above 100°C to become fluid. That means that the product needs to be heated inside the tank or box, in order to unload or process the bitumen. There are several heating options that can be installed inside a tank. Please find below several heating options. Our specialist will gladly advise you which system is the best fit for your requirements.

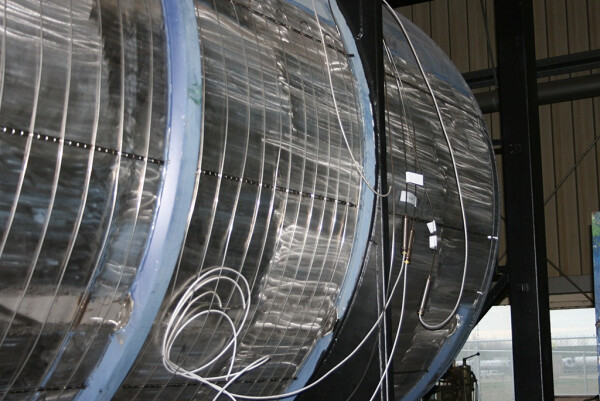

Electric heating tank

The Trans Heat SFM cable as electrical heating solution to maintain a tank container to 180 °C - 210 °C.We use a low power density on the cable. This has the advantage that the heat is very well distributed on the surface, preventing overheating of the product.The tank container will be covered for 80% with Trans Heat cable, including the heads.

Thermal oil bitumen tank

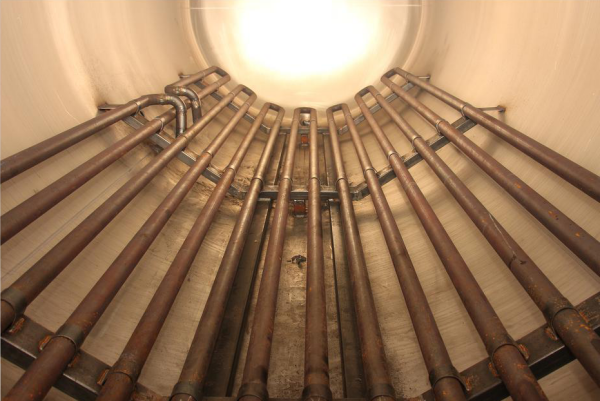

A thermal oil tank has a closed circuit of pipes in the bottom of the tank, where the heated thermal oil flows through. The pipes give off heat through conduction and convection, heating the bitumen or emulsion that is inside the tank.

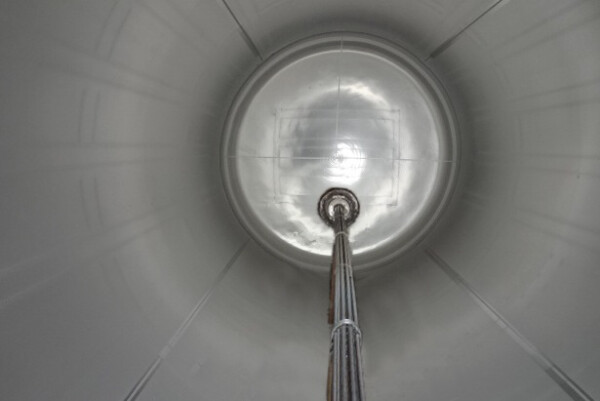

Immersion Heater Bitumen Tank

Meeberg can offer ISO Tanks with electrically powered immersion heaters. These electric heaters can be added to practically every tank, and can reach / maintain high temperatures. These heaters can even be used to keep bitumen at discharge temperature ( 160-200 degrees Celsius).

Flame tube heating

Using flame tubes as a heating system is an excellent method for heating bitumen. Once these pipes are installed, multiple tests will be conducted to guarantee the system's absolute integrity. The flame tube system is certified and complies with IMO/ADR/RID/USDOT regulations, with applicability under IMO2/T3/L2.65BN codes. New sleeves will be inserted into the pipes to prevent wear and tear of the original ones.

Flame tubes

A flame tube heating system is a combustion-based heating technology that utilizes a flame tube to generate heat by burning fuel.

Burners

Meeberg can deliver diesel and gasburners which are compatible with all of our flame tubed bitumen products. The fully loaded tank or bitubox can be heated within 10 hours.

Bitumenpumps

Depending on the type of bitumen, capacity and setup Meeberg can advise and deliver the perfect pump for each project.

Meeberg as your bitumen operator partner

Did you know that Meeberg can be your partner throughout the entire supply chain? We handle the entire process, offering you a customized solution for bitumen procurement, loading, transportation, and storage. From tank design and production to logistics and export, Meeberg takes care of every aspect. No matter the size of your bitumen project, we provide a tailored solution that aligns with all your needs. With our extensive experience, Meeberg has a global network of contacts. Thanks to our efficiency, we can consistently provide competitive quotes.

Feel free to reach out to us if you require assistance with your bitumen project.

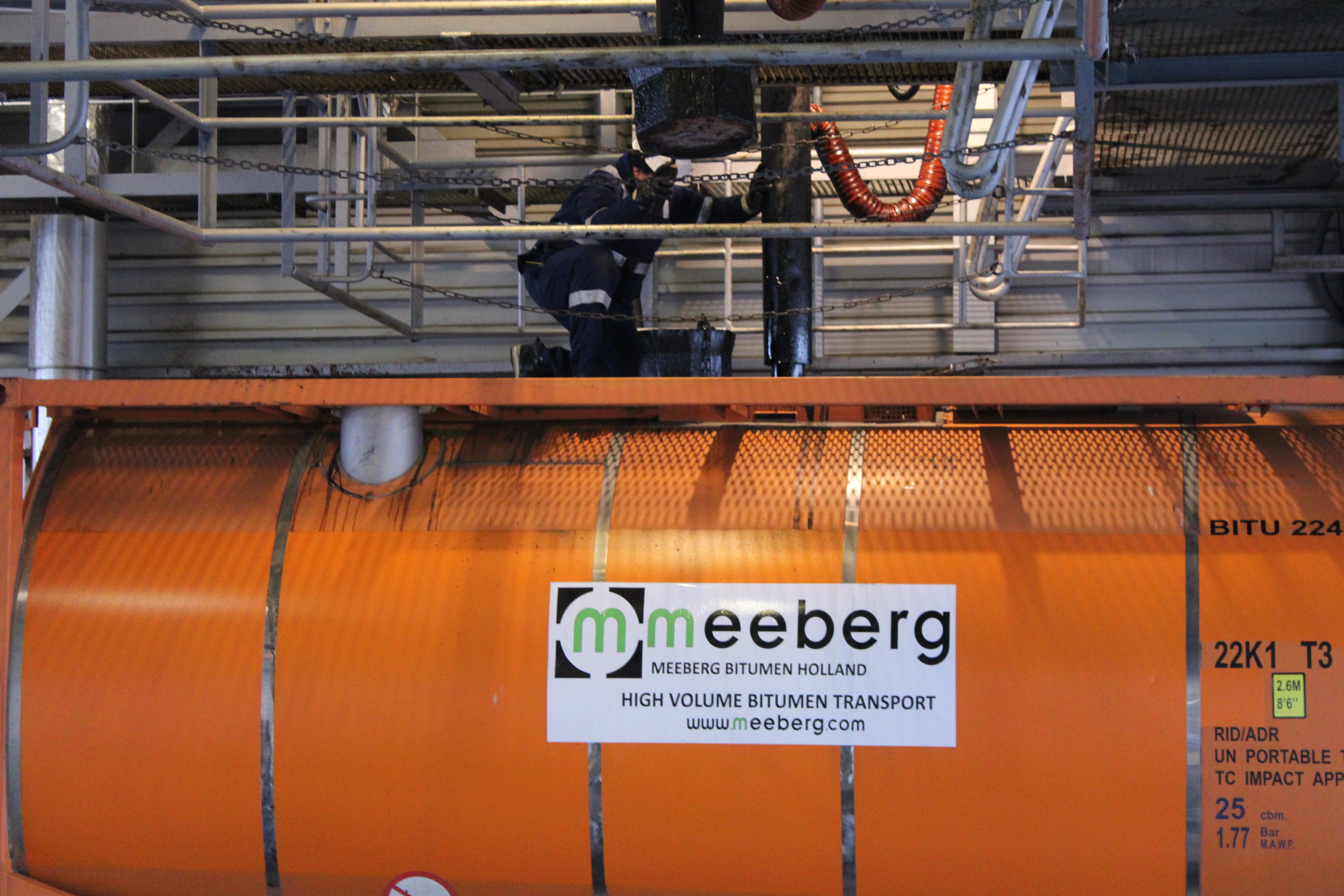

Bitumen tanks Meeberg

Looking for a Bitumen tank?

Let Mike help you find the perfect tank for you. You can give us a call or send us an email. We'll answer your questions as soon as possible.
+31 (0) 61 47 69 559

Highlighted bitumen stock

Full stock

Thermal Oil Bitumen tank

Tank No.: BITU-224068-1
T-Code: T3
Capacity: 24000
Usage: Bitumen
Heating system: Thermal oil
Condition: Used

31.000L Bitumen Swapbody

Tank No.: BITU-231018-2
T-Code: T3
Capacity: 31000
Usage: Bitumen
Heating system: Thermal oil
Condition: Used

25.000L bitumen tank

Tank No.: BITU-225070-9
T-Code: T3
Capacity: 25000
Usage: Bitumen
Heating system: Flame tube
Condition: Used

24.000L bitumen tank

Tank No.: BITU-224167-2
T-Code: T3
Capacity: 24000
Usage: Bitumen
Heating system: Flame tube
Condition: Used
